Sammic AX-100 Pass-Through Dishwasher

Sammic AX-100 Pass-Through Dishwasher with a 500 x  500 mm basket and options for a drain pump , as well as single phase or three phase power. Features a fully electronic control panel with a simple and intuitive interface with temperature ready indicator and 3 selectable wash cycles of 120, 180 and 210 seconds.

Sani-Control guarantee

• GUARANTEED DISINFECTION in compliance with standard DIN 10534.
• THERMAL LOCK function: Ensures that rinsing will be carried out at the ideal temperature to disinfect the dishes.

• New recessed bodywork

  • Ergonomic design with rounded corners to prevent the accumulation of dirt and facilitate cleaning.
  • Compact tank volume (50% water saving compared to the previous range )

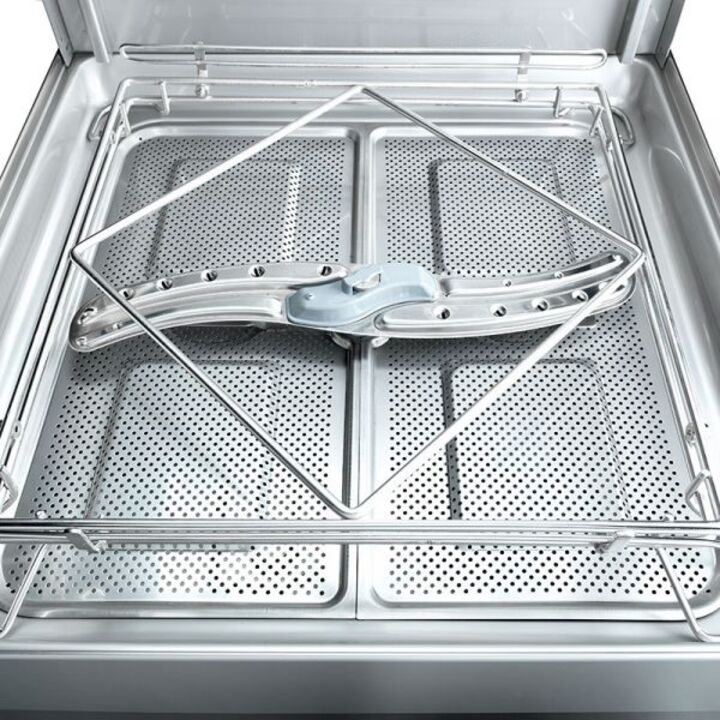

• Hydroblade™ washing arms

  • Redesigned nozzles for greater washing performance.
  • The “monoblock” design delivers durability and resistance to impacts.
  • 30% savings in water consumption during rinsing compared to the previous range
• Boiler element: 6000W
  Tank element: 2500W
  Wash pump power: 750W
  Total Loading: 6750WSingle Phase
  6.75kW
  230V, 32AMP, 50Hz
  REQUIRES HARDWIRINGThree Phase
  6.75kW
  400V, 16AMP, 50Hz
  REQUIRES HARDWIRING
